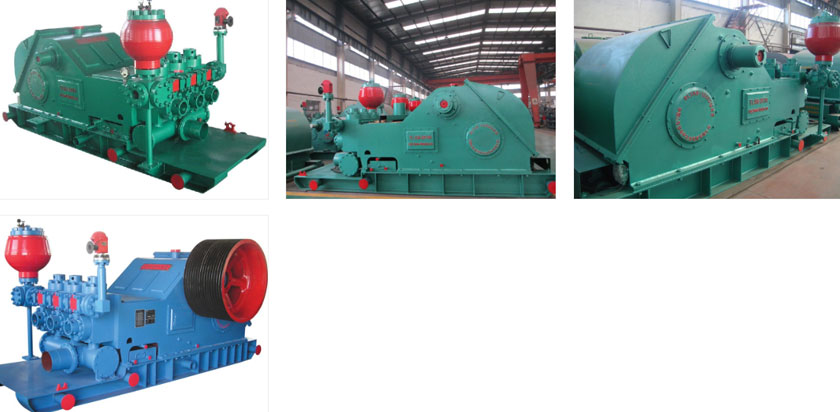

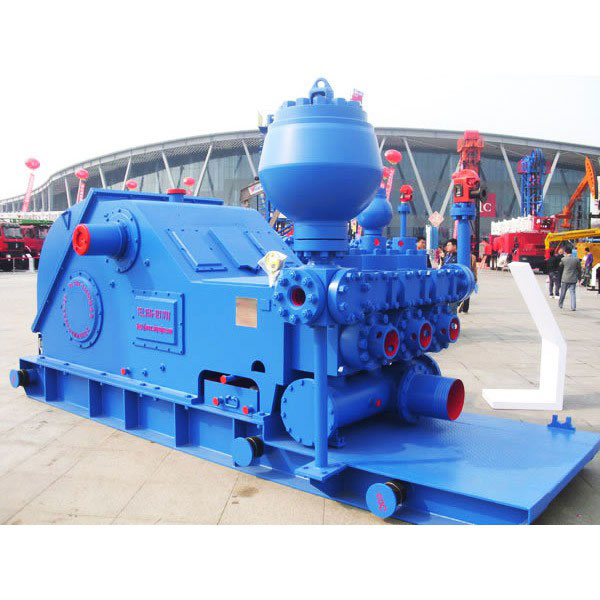

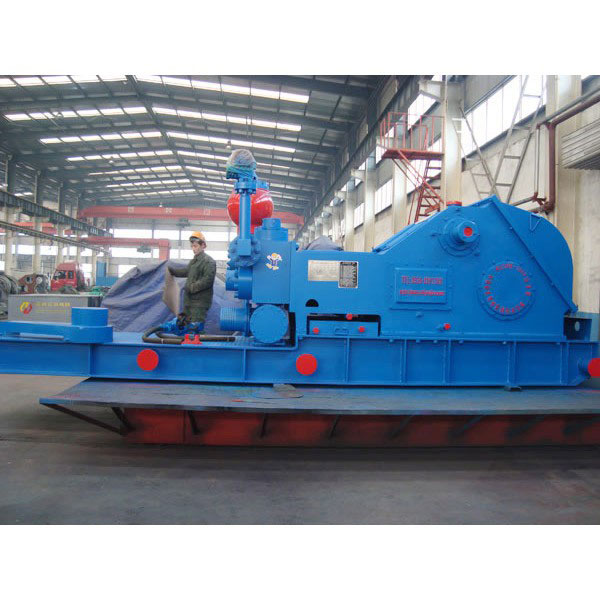

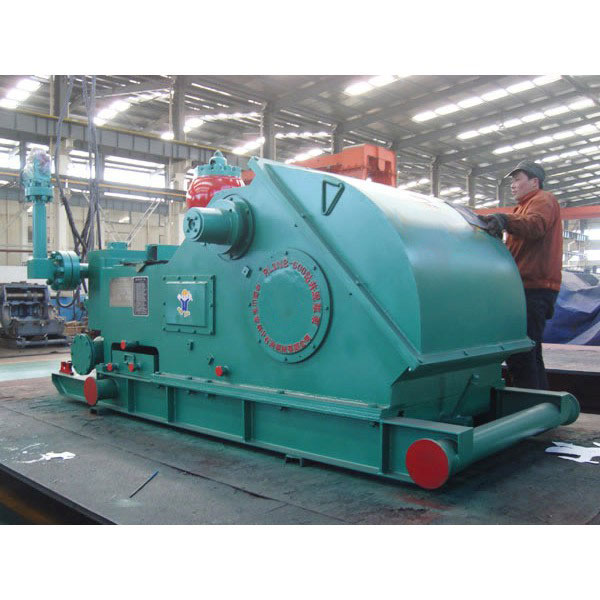

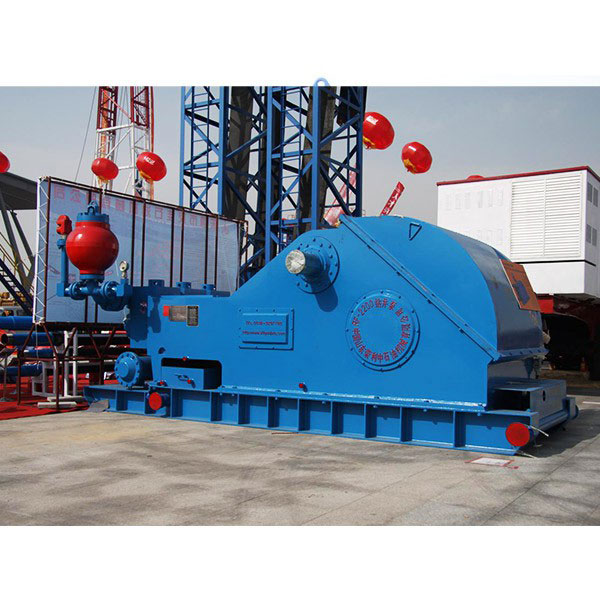

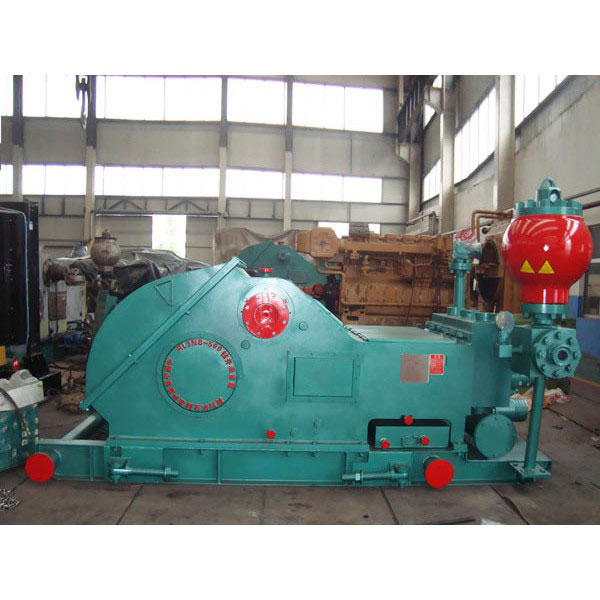

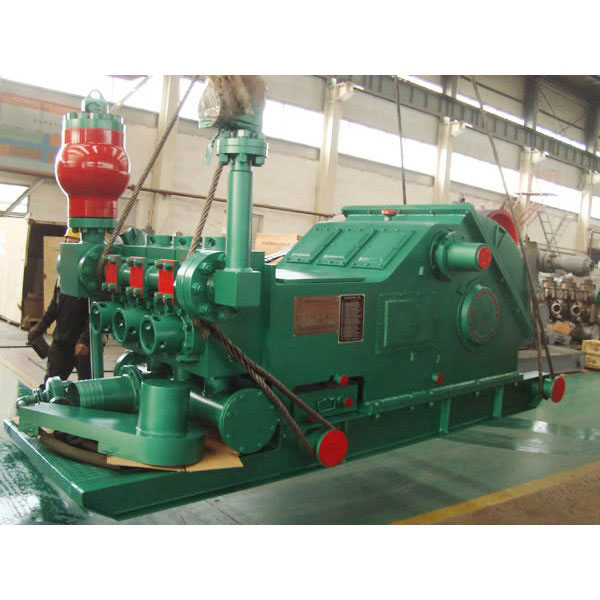

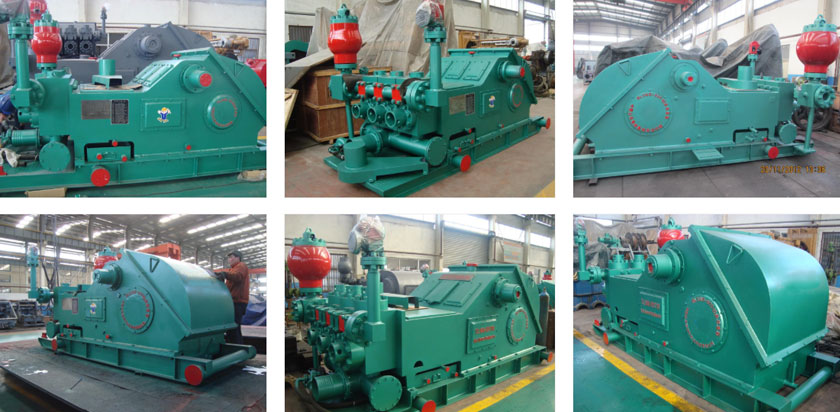

Our RL3NB series triplex mud pump features an extended stroke design that enables the pump to operate at a lower stroke rate. This optimized configuration enhances suction performance and significantly prolongs the service life of expendable parts. The RL3NB series is manufactured and tested in strict accordance with SY5138 standard, as established by the Ministry of Petroleum Industry of China.
Applications
These slurry pumps are widely used for well drilling, workover operations, long-distance liquid transportation, polymer flooding, and water injection in oilfields, as well as in various industrial and mining applications.
Main Components
The RL3NB series triplex mud pump consists primarily of two main sections: the power end and the fluid end.
Power End: Includes the base, housing, main drive shaft, crankshaft, gear pair, and connecting rod crosshead assembly.
Fluid End: Comprises the high-pressure valve box, discharge manifold assembly, and suction manifold assembly.
Power End Lubrication
To meet diverse operational requirements, the power end’s herringbone gears, bearings, crossheads, sliding plates, and guide plates can be lubricated through two available systems:
Splash Gravity Lubrication: A self-contained lubrication method relying on oil splash and gravity feed.
Dual Lubrication: A combined system featuring externally forced lubrication alongside splash gravity lubrication for enhanced protection.
Fluid End Cooling
The liners and pistons within the fluid end are effectively spray-cooled by dedicated centrifugal pumps, ensuring stable performance during continuous operation.
Specification of RL3NB-350 Triplex Mud Pump
| Item |
RL3NB350 |
| Rated Power (hp/kW) |
350 (257) |
| Stroke Rate (SPM) |
130 |
| Stroke Length (mm) |
180 |
| Gear Ratio |
4.483 |
| Suction Inlet Diameter(mm) |
203 |
| Discharge Outlet Diameter(mm) |
76 |
| Valve |
5# |
| Liner (mm) |
φ90–φ160 |
| Overall Dimension (L×W×H mm) |
3600×2080×2015 |
| Approximate Weight (kg) |
8058 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ90 |
φ100 |
φ110 |
φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
| 31 |
25 |
20.8 |
17.5 |
14.9 |
12.8 |
11.2 |
9.8 |
8.68 |
| Displacement (L/S) |
| 130 |
7.44 |
9.18 |
11.11 |
13.23 |
15.52 |
18.00 |
20.67 |
23.51 |
26.53 |
| 120 |
6.87 |
8.48 |
10.26 |
12.21 |
14.33 |
16.62 |
19.08 |
21.70 |
24.51 |
| 110 |
6.29 |
7.77 |
9.40 |
11.19 |
13.13 |
15.23 |
17.49 |
19.90 |
22.46 |
| 100 |
5.72 |
7.07 |
8.55 |
10.17 |
11.94 |
13.85 |
15.90 |
18.09 |
20.43 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-500 Triplex Mud Pump
| Item |
RL3NB500 |
| Rated Power (hp/kW) |
500 (368) |
| Stroke Rate (SPM) |
120 |
| Stroke Length (mm) |
180 |
| Gear Ratio |
4.696 |
| Suction Inlet Diameter(mm) |
203 |
| Discharge Outlet Diameter(mm) |
83 |
| Valve |
5# |
| Liner (mm) |
φ100–φ170 |
| Overall Dimension (L×W×H mm) |
3600×2230×2080 |
| Approximate Weight (kg) |
9484 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ100 |
φ110 |
φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
| 35 |
29.6 |
24.9 |
21.2 |
18.3 |
16 |
14 |
12 |
| Displacement (L/S) |
| 120 |
8.48 |
10.26 |
12.21 |
14.33 |
16.62 |
19.08 |
21.70 |
24.50 |
| 110 |
7.77 |
9.40 |
11.19 |
13.13 |
15.23 |
17.49 |
19.90 |
22.46 |
| 100 |
7.07 |
8.55 |
10.17 |
11.94 |
13.85 |
15.90 |
18.09 |
20.42 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-500A Triplex Mud Pump
| Item |
RL3NB500A |
| Rated Power (hp/kW) |
500 (368) |
| Stroke Rate (SPM) |
135 |
| Stroke Length (mm) |
196 |
| Gear Ratio |
4.696 |
| Suction Inlet Diameter(mm) |
203 |
| Discharge Outlet Diameter(mm) |
83 |
| Valve |
5# |
| Liner (mm) |
φ100–φ170 |
| Overall Dimension (L×W×H mm) |
3600×2230×2080 |
| Approximate Weight (kg) |
11000 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ100 |
φ110 |
φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
| 35 |
29.6 |
24.9 |
21.2 |
18.3 |
16 |
14 |
12 |
| Displacement (L/S) |
| 135 |
10.39 |
12.57 |
14.96 |
17.55 |
20.36 |
23.37 |
26.59 |
30.01 |
| 120 |
9.23 |
11.17 |
13.29 |
15.60 |
18.09 |
20.77 |
23.63 |
26.68 |
| 110 |
8.46 |
10.24 |
12.19 |
14.30 |
16.59 |
19.04 |
21.66 |
24.46 |
| 100 |
7.69 |
9.31 |
11.08 |
13.00 |
15.08 |
17.31 |
19.69 |
22.23 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-600 Triplex Mud Pump
| Item |
RL3NB600 |
| Rated Power (hp/kW) |
600 (441) |
| Stroke Rate (SPM) |
135 |
| Stroke Length (mm) |
196 |
| Gear Ratio |
4.696 |
| Suction Inlet Diameter(mm) |
203 |
| Discharge Outlet Diameter(mm) |
83 |
| Valve |
5# |
| Liner (mm) |
φ100–φ180 |
| Overall Dimension (L×W×H mm) |
3600×2230×2080 |
| Approximate Weight (kg) |
11000 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ100 |
φ110 |
φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
| 35 |
29.6 |
24.9 |
21.2 |
18.3 |
16 |
14 |
12 |
10.7 |
| Displacement (L/S) |
| 135 |
10.39 |
12.57 |
14.96 |
17.55 |
20.36 |
23.37 |
26.59 |
30.01 |
33.65 |
| 120 |
9.23 |
11.17 |
13.29 |
15.60 |
18.09 |
20.77 |
23.63 |
26.68 |
29.91 |
| 110 |
8.46 |
10.24 |
12.19 |
14.30 |
16.59 |
19.04 |
21.66 |
24.46 |
27.42 |
| 100 |
7.69 |
9.31 |
11.08 |
13.00 |
15.08 |
17.31 |
19.69 |
22.23 |
24.93 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-800 Triplex Mud Pump
| Item |
RL3NB800 |
| Rated Power (hp/kW) |
800 (588) |
| Stroke Rate (SPM) |
130 |
| Stroke Length (mm) |
273 |
| Gear Ratio |
3.482 |
| Suction Inlet Diameter(mm) |
254 |
| Discharge OutletDiameter (mm) |
101 |
| Valve |
6# |
| Liner (mm) |
φ120–φ180 |
| Overall Dimension (L×W×H mm) |
3900×2155×2052 |
| Approximate Weight (kg) |
17200 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ100 |
φ110 |
φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
| 35 |
33 |
27.7 |
23.6 |
20.3 |
17.7 |
15.6 |
13.8 |
12.3 |
| Displacement (L/S) |
| 130 |
13.93 |
16.86 |
20.06 |
23.54 |
27.30 |
31.34 |
35.66 |
40.26 |
45.13 |
| 120 |
12.86 |
15.56 |
18.52 |
21.73 |
25.20 |
28.93 |
32.92 |
37.16 |
41.66 |
| 110 |
11.79 |
14.26 |
16.97 |
19.92 |
23.10 |
26.52 |
30.17 |
34.06 |
38.19 |
| 100 |
10.72 |
12.97 |
15.43 |
18.11 |
21.00 |
24.11 |
27.43 |
30.97 |
34.72 |
| 90 |
9.64 |
11.67 |
13.89 |
16.30 |
18.90 |
21.70 |
24.69 |
27.87 |
31.25 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-1000A Triplex Mud Pump
| Item |
RL3NB1000A |
| Rated Power (hp/kW) |
1000 (735) |
| Stroke Rate (SPM) |
125 |
| Stroke Length (mm) |
273 |
| Gear Ratio |
3.482 |
| Suction Inlet Diameter(mm) |
254 |
| Discharge OutletDiameter (mm) |
101 |
| Valve |
6# |
| Liner (mm) |
φ120–φ180 |
| Overall Dimension (L×W×H mm) |
3900×2240×2052 |
| Approximate Weight (kg) |
17500 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
| 35 |
33 |
28 |
24 |
21 |
19 |
15 |
| Displacement (L/S) |
| 125 |
19.29 |
22.64 |
26.25 |
30.14 |
34.29 |
38.71 |
43.40 |
| 120 |
18.52 |
21.73 |
25.20 |
28.93 |
32.92 |
37.16 |
41.66 |
| 110 |
16.97 |
19.92 |
23.10 |
26.52 |
30.17 |
34.06 |
38.19 |
| 100 |
15.43 |
18.11 |
21.00 |
24.11 |
27.43 |
30.97 |
34.72 |
| 90 |
13.89 |
16.30 |
18.90 |
21.70 |
24.69 |
27.87 |
31.25 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-1000D Triplex Mud Pump
| Item |
RL3NB1000D |
| Rated Power (hp/kW) |
1000 (735) |
| Stroke Rate (SPM) |
125 |
| Stroke Length (mm) |
273 |
| Gear Ratio |
3.482 |
| Suction Inlet Diameter(mm) |
254 |
| Discharge OutletDiameter (mm) |
101 |
| Valve |
6# |
| Liner (mm) |
φ120–φ180 |
| Overall Dimension (L×W×H mm) |
4600×2240×2052 |
| Approximate Weight (kg) |
18000 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ120 |
φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
| 35 |
33 |
28 |
24 |
21 |
19 |
15 |
| Displacement (L/S) |
| 125 |
19.29 |
22.64 |
26.25 |
30.14 |
34.29 |
38.71 |
43.40 |
| 120 |
18.52 |
21.73 |
25.20 |
28.93 |
32.92 |
37.16 |
41.66 |
| 110 |
16.97 |
19.92 |
23.10 |
26.52 |
30.17 |
34.06 |
38.19 |
| 100 |
15.43 |
18.11 |
21.00 |
24.11 |
27.43 |
30.97 |
34.72 |
| 90 |
13.89 |
16.30 |
18.90 |
21.70 |
24.69 |
27.87 |
31.25 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-1300A Triplex Mud Pump
| Item |
RL3NB1300A |
| Rated Power (hp/kW) |
1300 (955) |
| Stroke Rate (SPM) |
120 |
| Stroke Length (mm) |
305 |
| Gear Ratio |
4.194 |
| Suction Inlet Diameter(mm) |
305 |
| Discharge OutletDiameter (mm) |
101 |
| Valve |
6#/7# |
| Liner (mm) |
φ130–φ190 |
| Overall Dimension (L×W×H mm) |
4300×2450 ×2513 |
| Approximate Weight (kg) |
21500 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
φ190 |
| 35 |
31 |
27 |
24 |
21 |
19 |
17 |
| Displacement (L/S) |
| 120 |
24.28 |
28.16 |
32.32 |
36.78 |
41.52 |
46.54 |
51.86 |
| 110 |
22.25 |
25.81 |
29.63 |
33.71 |
38.06 |
42.67 |
47.54 |
| 100 |
20.23 |
23.46 |
26.94 |
30.65 |
34.60 |
38.79 |
43.22 |
| 90 |
18.21 |
21.12 |
24.24 |
27.58 |
31.14 |
34.91 |
38.89 |
| 80 |
16.19 |
18.77 |
21.55 |
24.52 |
27.68 |
31.03 |
34.57 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-1300D Triplex Mud Pump
| Item |
RL3NB1300D |
| Rated Power (hp/kW) |
1300 (955) |
| Stroke Rate (SPM) |
120 |
| Stroke Length (mm) |
305 |
| Gear Ratio |
4.194 |
| Suction Inlet Diameter (mm) |
305 |
| Discharge Outlet Diameter(mm) |
101 |
| Valve |
6#/7# |
| Liner (mm) |
φ130–φ190 |
| Overall Dimension (L×W×H mm) |
5050×2450×2625 |
| Approximate Weight (kg) |
23000 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ130 |
φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
φ190 |
| 35 |
31 |
27 |
24 |
21 |
19 |
17 |
| Displacement (L/S) |
| 120 |
24.28 |
28.16 |
32.32 |
36.78 |
41.52 |
46.54 |
51.86 |
| 110 |
22.25 |
25.81 |
29.63 |
33.71 |
38.06 |
42.67 |
47.54 |
| 100 |
20.23 |
23.46 |
26.94 |
30.65 |
34.60 |
38.79 |
43.22 |
| 90 |
18.21 |
21.12 |
24.24 |
27.58 |
31.14 |
34.91 |
38.89 |
| 80 |
16.19 |
18.77 |
21.55 |
24.52 |
27.68 |
31.03 |
34.57 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
Specification of RL3NB-1600 Triplex Mud Pump
| Item |
RL3NB1600 |
| Rated Power (hp/kW) |
1600 (1176) |
| Stroke Rate (SPM) |
120 |
| Stroke Length (mm) |
305 |
| Gear Ratio |
3.657 |
| Suction Inlet Diameter (mm) |
309 |
| Discharge Outlet Diameter(mm) |
128 |
| Valve |
7# |
| Liner (mm) |
φ140–φ190 |
| Overall Dimension (L×W×H mm) |
5500×2822×2660 |
| Approximate Weight (kg) |
27100 |
| Stroke per Minute |
Liner Size (mm) and Rated Pressure (Mpa) |
| φ140 |
φ150 |
φ160 |
φ170 |
φ180 |
φ190 |
| 35 |
33 |
29 |
26 |
23 |
21 |
| Displacement (L/S) |
| 120 |
28.16 |
32.32 |
36.78 |
41.52 |
46.54 |
51.86 |
| 110 |
25.81 |
29.63 |
33.71 |
38.06 |
42.67 |
47.54 |
| 100 |
23.46 |
26.94 |
30.65 |
34.60 |
38.79 |
43.22 |
| 90 |
21.12 |
24.24 |
27.58 |
31.14 |
34.91 |
38.89 |
| 80 |
18.77 |
21.55 |
24.52 |
27.68 |
31.03 |
34.57 |
| Based on 100% volumetric efficiency and 90% mechanical efficiency |
